If you experience any issues with a model's workflow, you can view your workflow's process history to check it is behaving as expected and troubleshoot any issues.

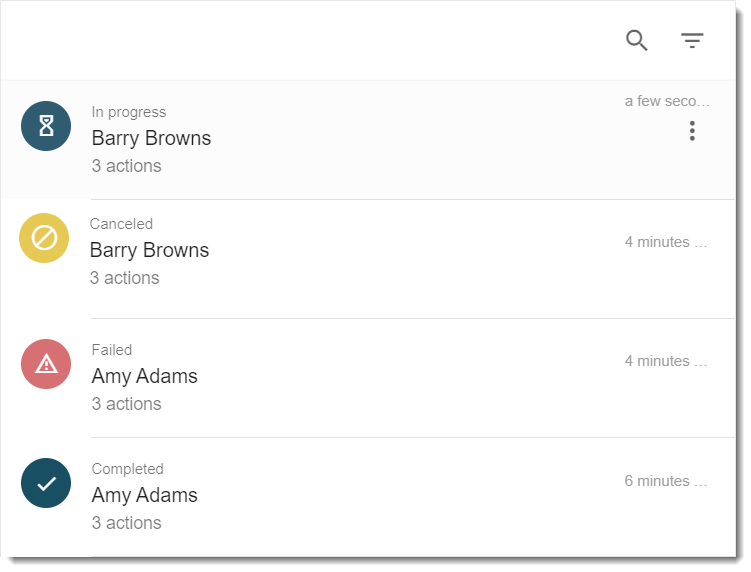

Process history page
Use this page to view the workflow's process history so that you can check the workflow is behaving as expected and troubleshoot problems.
|
Process history No. |
This indicates the number of workflow processes in the list. |
|
|
Opens the Search box so that you can search your list of processes. You can search by the default label or the instance ID. |
|
|
Opens the Filter menu so that you can filter your list of processes. |
|
In progress |
This indicates that the process action is currently running. |
|
Canceled |
This indicates that the process has been canceled. |
|
Failed |
This indicates that the process action has encountered an error. |
|
Completed |
This indicates that the process action is complete. |
|
Process Title |
The model instance label or, if not available, the instance ID. |
|
No. actions |
The number of actions completed so far. |
|
a minute ago / 3 hours ago / 4 days ago |
How long ago the workflow was created. |
|
|
Only shows for in-progress processes. This shows the option to cancel the process. |
|
Process row |
Opens the Action history dialog box. |

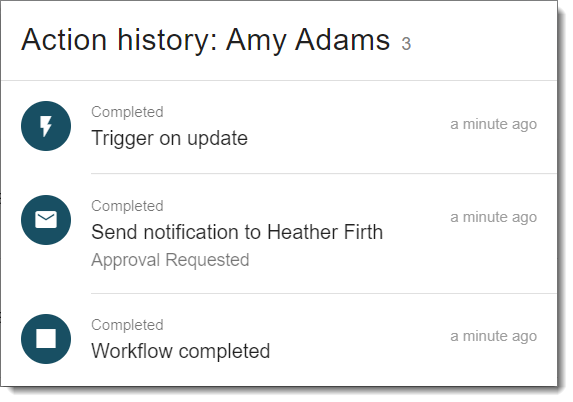

Use this dialog box to view the action history of a workflow process. The workflow actions are in ascending chronological order of when that action was created.
|
Action history: Instance label No. |
The instance label or id if it has no label and the number of actions taken. |
|
|
The icon represents the type of action, and the color represents the status. |
|
Completed / Failed |
The overline shows the status of the action. |
|
Action Title |
The action title contains the type of action together with a little more context for each. |
|
Action subtitle |
The sub-title contains the most useful piece of data for the action. For example, for a notification action, this shows the Subject. |
|
a minute ago / 3 hours ago / 5 days ago |
Indicates how long ago the action was created. |
|
Action row |

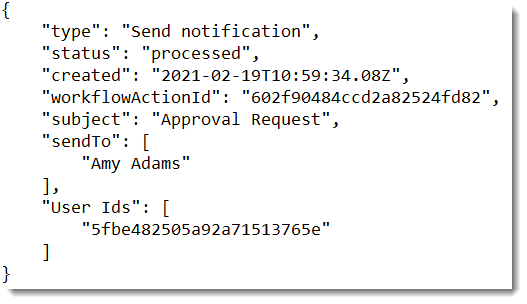

Opens the Action detail dialog box where you can review the raw code and diagnose any issues. |
